Customized silicone rubber insulators are suitable for power station equipment, with good hydrophobicity, aging resistance, leakage scratch resistance and electrical damage resistance, high tensile strength and bending strength, high mechanical strength, impact resistance, shock resistance and brittleness. Customized silicone rubber insulators has the advantages of light weight and convenient installation, and the dimensions of its top and bottom are the same as those of the corresponding porcelain pillars, and can be used interchangeably.
MAIN TECHNICAL PARAMETERS
Spec.& model | Rated voltage | Rated mechanical | Shed dia | Strcture height(mm)±10 | Insulating distance | Min nominal creepage distance | Lightning full wave impulse withstand voltage | 1 min Power frequency wet withstand voltage |
FZWS-12/4 | 12 | 4 | 105/80 | 215 | 175 | 305 | 75 | 42 |
FZS-35/6 | 35 | 6 | 135 | 445 | 378 | 890 | 185 | 100 |
| FZWS-35/6 | 35 | 6 | 140/115 | 450 | 360 | 946 | 185 | 100 |
| FZWS-66/8 | 66 | 8 | 170/135 | 770 | 670 | 1825 | 325 | 165 |
| FZWS-110/10 | 110 | 10 | 185/160 | 1220 | 1085 | 3160 | 490 | 230 |
| FZWS-252/8 | 220 | 8 | 205/185 | 2300 | 2070 | 6700 | 1050 | 395 |
Notification for order:
1.The hardware at both ends can be customized and matched according to the requirements of users.

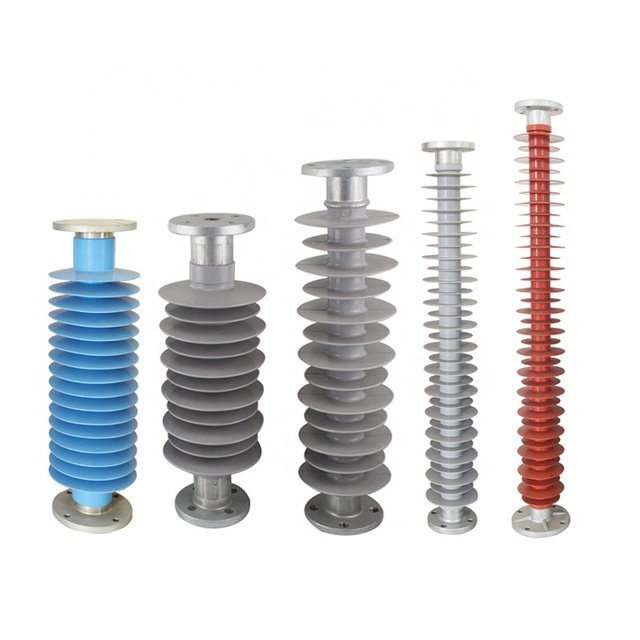

2. The color of silicone rubber is red by default, and you can also choose gray, blue, yellow, black and other colors.
Overview
Place of Origin: Shanghai, China | Brand Name: Spowery |
Model Number: FZSW、FZS | Material: Composite Polymer |
Rated Voltage: 12-220KV | Tensile Strength: 4-10KN |
Insulation distance: 305-6700mm | Certification: ISO9001:2015 |
OEM: Accept |
Lead Time
Quantity(Pieces) | 1 - 2000 | >2000 |
Est. Time(days) | 25 | To be negotiated |
Packaging & Delivery
Packaging Details Standard Exported Packing Or As Your Request
Port：Shanghai or Tianjin Port

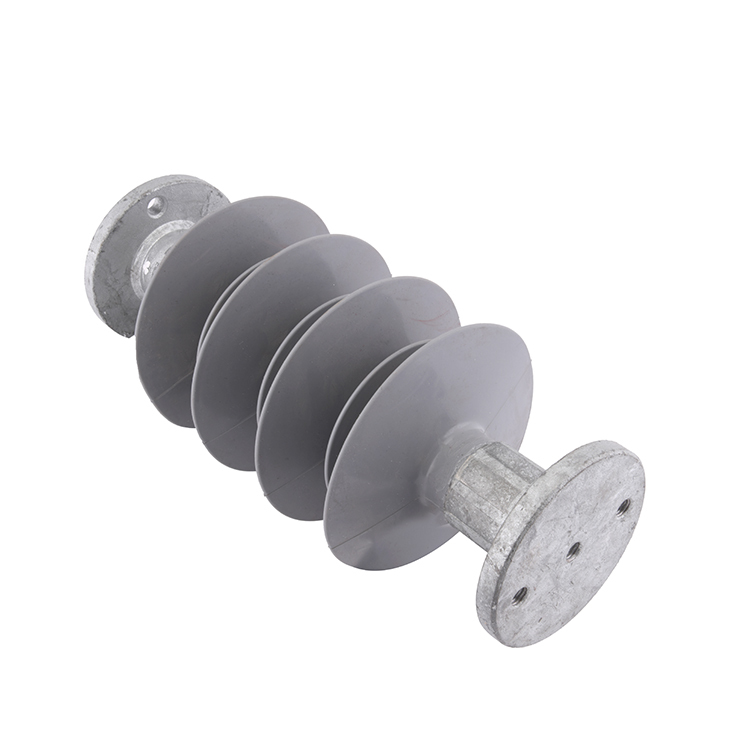

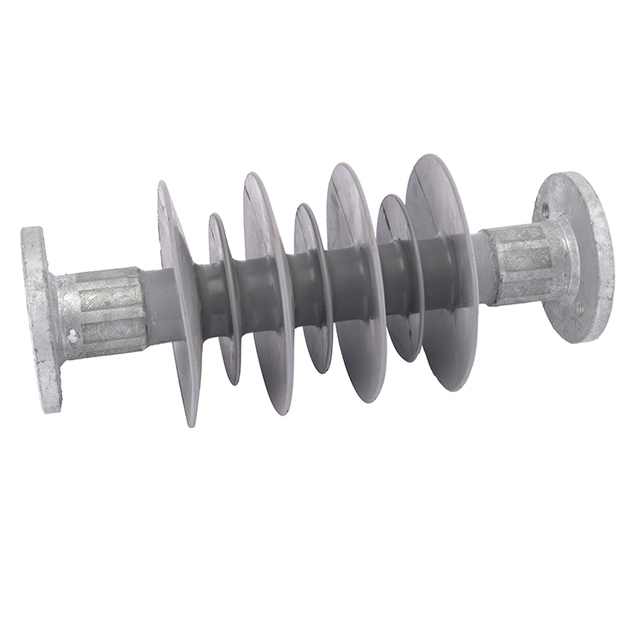

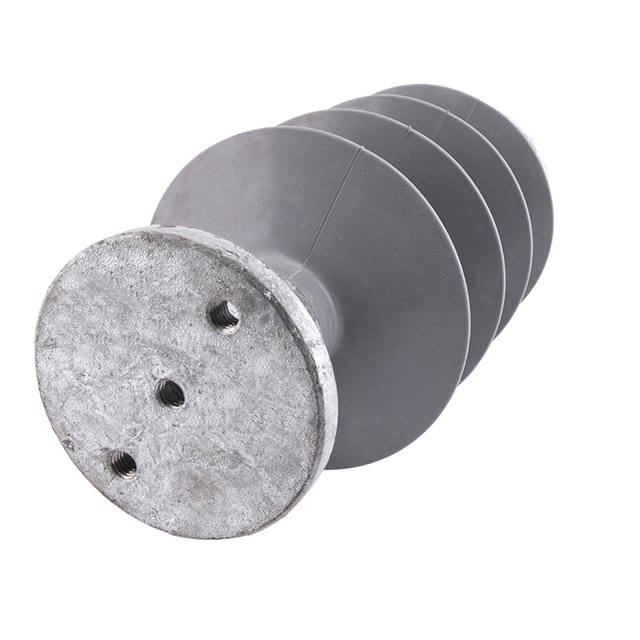

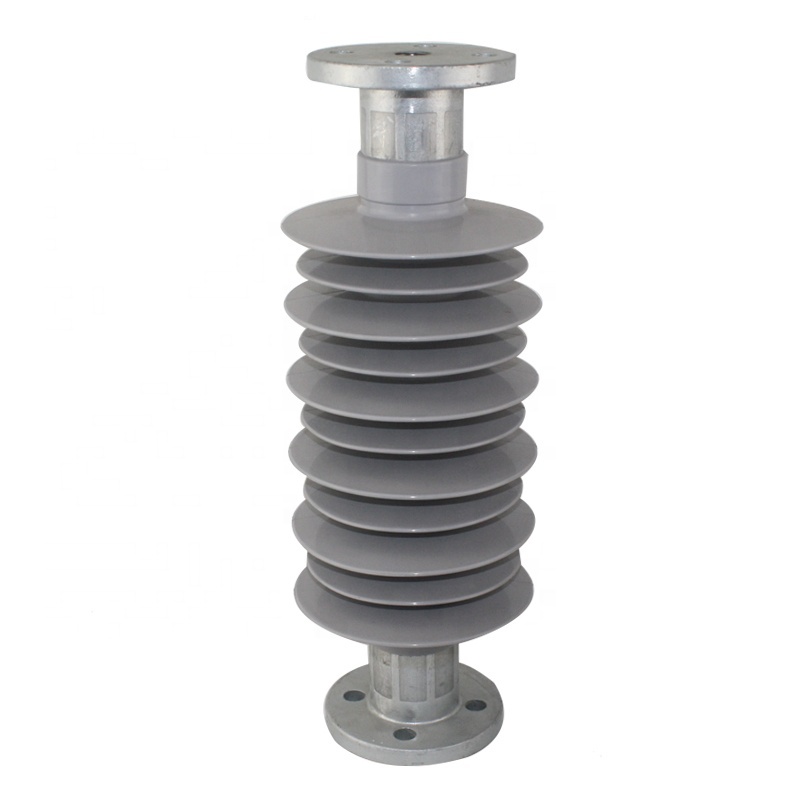

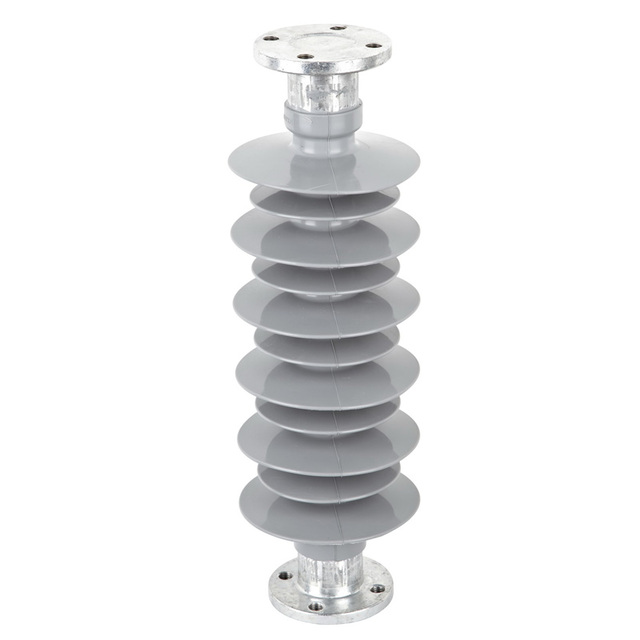

Picture Example
