Silicone rubber insulators, aliased as composite insulators, are used in high-voltage transmission lines.
Advantages of silicone rubber insulators:
Silicone rubber insulators have superior electrical properties and high mechanical strength. The tensile and flexural strength of the epoxy glass pull-out rods carried inside is 2 times higher than that of ordinary steel, and 8 to 10 times that of high-strength porcelain materials, which effectively improves the reliability of safe operation.
Silicone rubber insulators have good anti-pollution performance, good anti-pollution performance, strong anti-pollution flashover, and do not require cleaning, and can operate safely in heavy pollution.
Silicone rubber insulators are small in size and light in weight. The structure is light and easy to transport and install.
The silicone rubber shed has good water-repellent performance, and its overall structure ensures that the inner insulation is not damp, and there is no need for preventive insulation monitoring tests or cleaning, which reduces the workload of daily maintenance.
Silicone rubber insulators have good sealing performance and strong resistance to electrical corrosion. The shed material has a resistance to electric leakage and tracking up to TMA4.5 level, and has good aging resistance, corrosion resistance and low temperature resistance.
Silicone rubber insulators have strong impact resistance and shock resistance, are not easy to break, have high bending resistance, high torsional strength, can withstand internal pressure, and have strong explosion-proof force.
MAIN TECHNICAL PARAMETERS
| Spec.& model | Rated voltage | Rated mechanical | Shed dia × Shed no | Strcture height (mm)±10 | Insulating distance | Min nominal creepage distance | Lightning full wave impulse withstand voltage | 1 min Power frequency wet withstand voltage |
| FNB4-1/70-XX | 1-3 | 70 | 96*2 | 280 | 110 | 240 | 30 | 7 |
| FNB4-6/70-XX | 6 | 70 | 96*3 | 330 | 155 | 360 | 60 | 25 |
| FNB4-28/70-XX | 28 | 70 | 96*7 | 510 | 335 | 840 | 180 | 85 |
| FNB4-33/70-XX | 33 | 70 | 96*8 | 550 | 380 | 960 | 205 | 90 |
| FNB4-35/70-XX | 35 | 70 | 96*8 | 550 | 380 | 960 | 230 | 95 |
Notification for order:
1.The hardware at both ends can be customized and matched according to the requirements of users.
2.The color of silicone rubber is red by default, and you can also choose gray, blue, yellow, black and other colors.
Overview
Place of Origin: Shanghai, China | Brand Name: Spower |
Model Number:FNB4 | Material: Composite Polymer |
Rated Voltage:1-35KV | Tensile Strength:70KN |
Insulation distance:240-960mm | Certification: ISO9001:2015 |
OEM: Accept |
Lead Time
Quantity(Pieces) | 1 - 2000 | >2000 |
Est. Time(days) | 25 | To be negotiated |
Packaging & Delivery
Packaging Details Standard Exported Packing Or As Your Request
Port：Shanghai or Tianjin Port

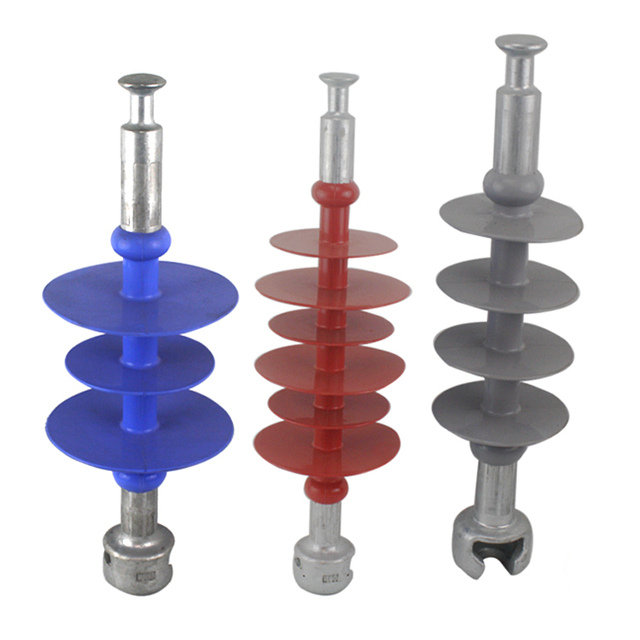

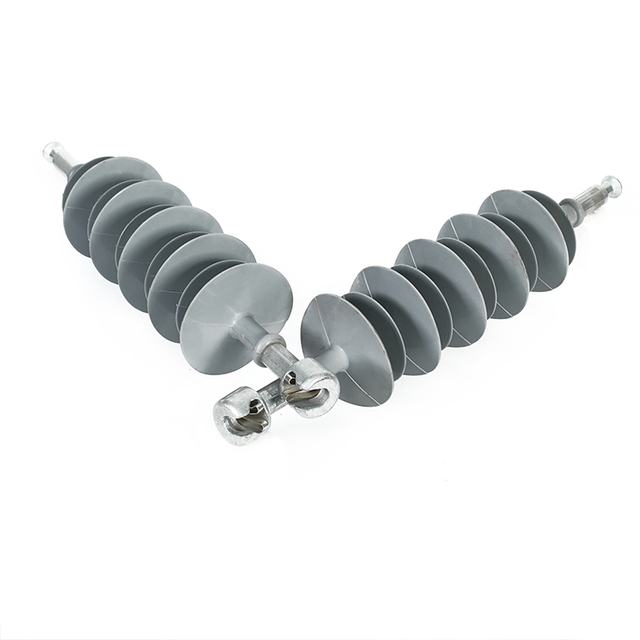

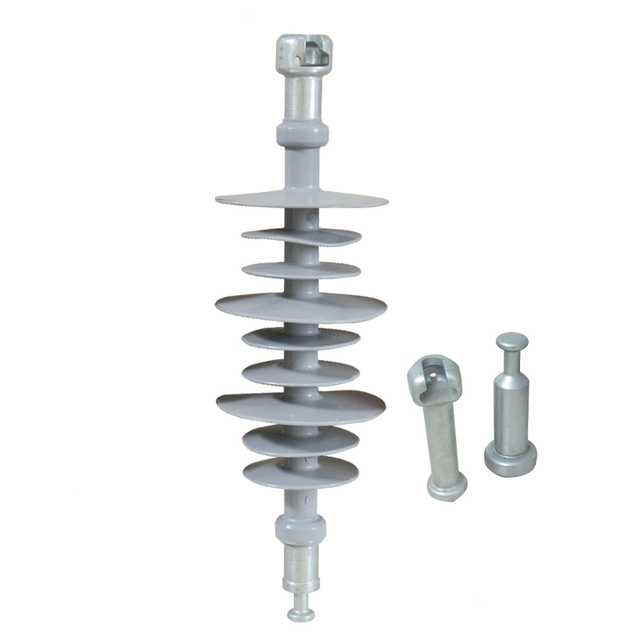

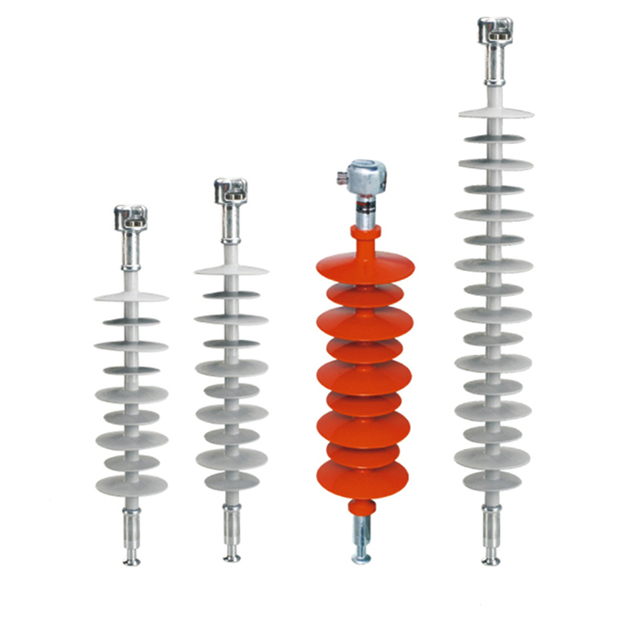

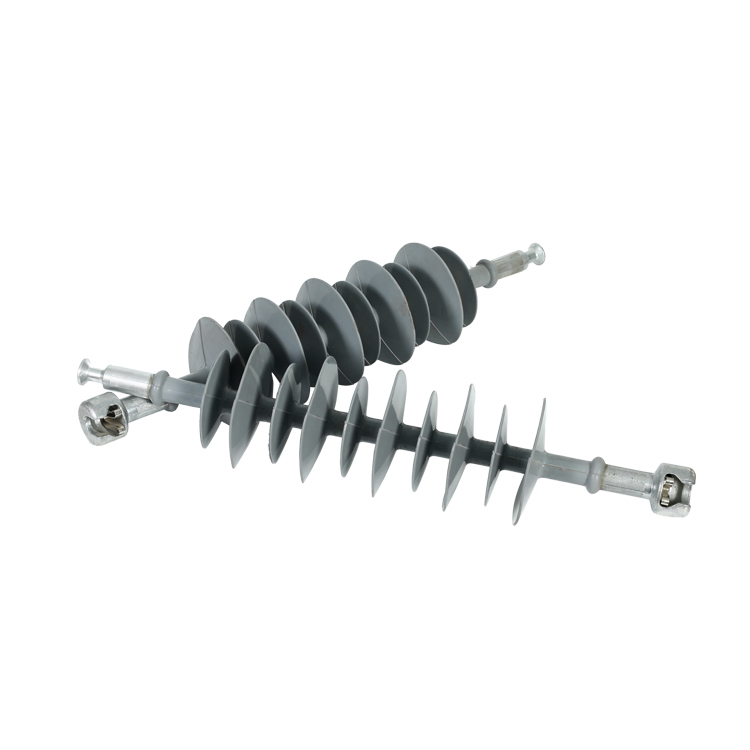

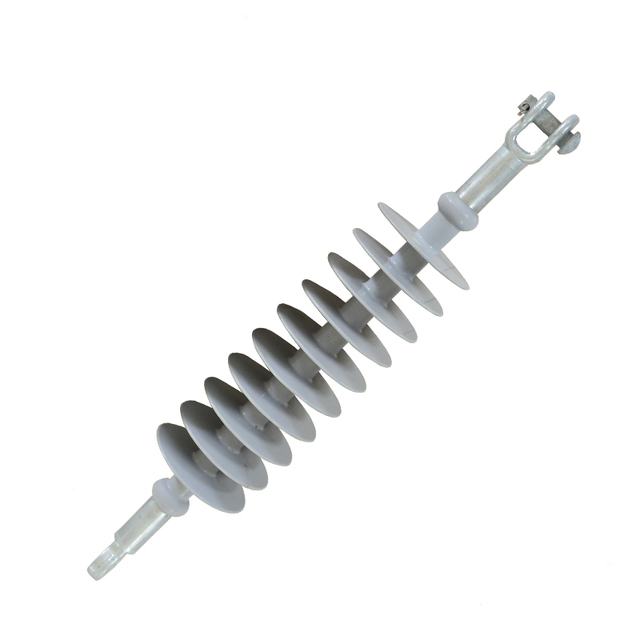

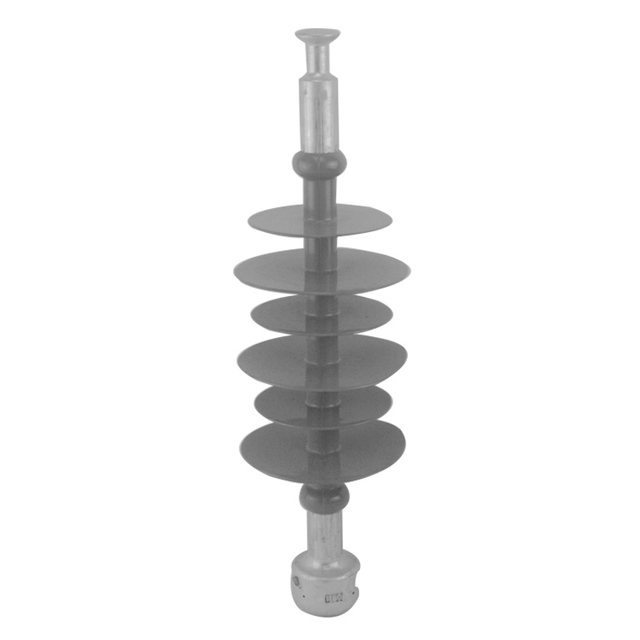

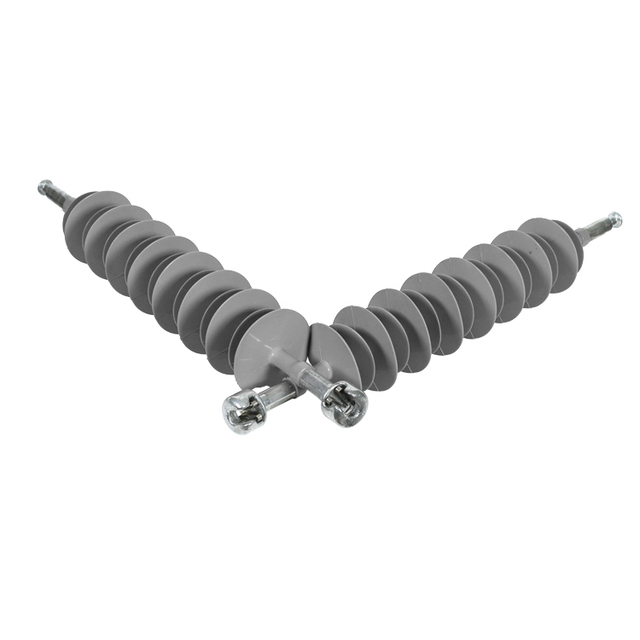

Picture Example ：
