Rated voltage | 24-27kV | 33-36kV |
Rated current | 100/200A | 100/200A |
Breaking Current | 8/10kA | 10/12kA |
Impulse Voltage (BIL) | 150 | 170 |
Power-frequency | 62kV | 72kV |
Leakage Distance | 540mm | 850mm |
Weight | 4.6kg | 6.8kg |
Dimensions | 52.5*34*9.5mm | 87*45*14mm |

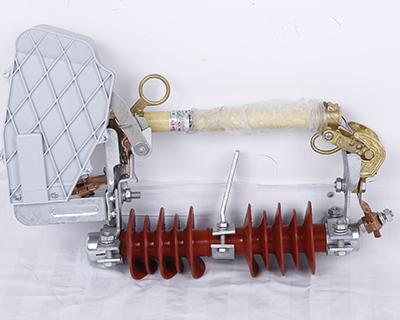

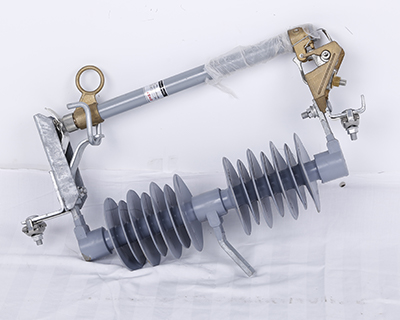

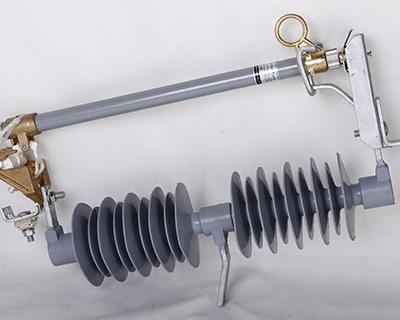

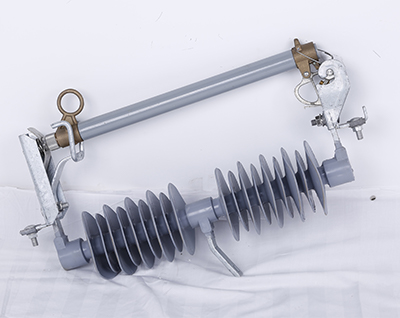

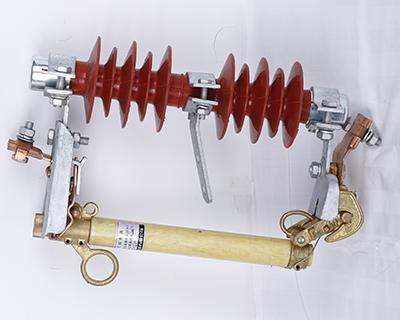

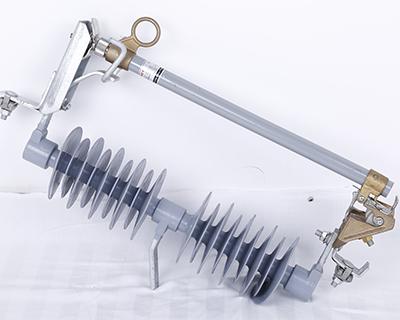

Dropout fuse cutout is one of the main products of Shanghai Powery Industries Co., Ltd with good Wholesale Price and quality, Factory direct sales Low price. Our company is a competitive supplier(s) China and manufacturers, with various famous products.
