Technical Specifications

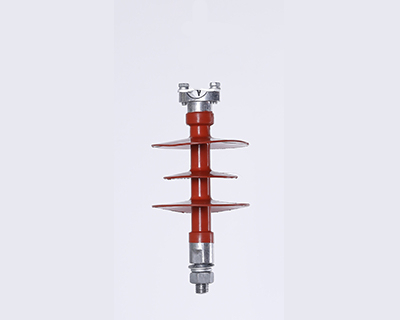

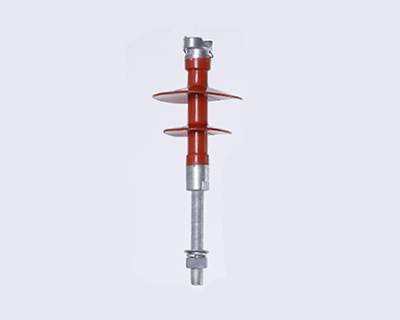

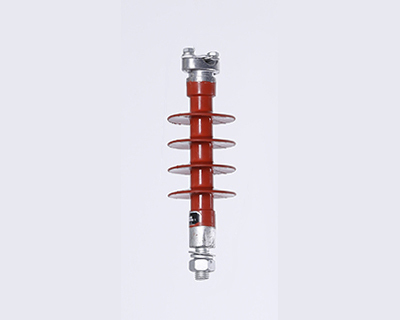

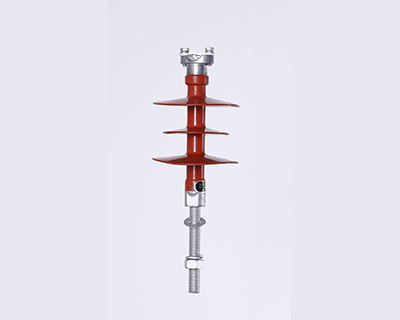

Advantages of composite pin type insulators make them widely used on high voltage distribution lines, such as can mounted vertical or horizontal, better anti-pollution ability, long span, and so on.
Rated voltage | Rated bending resistance load | Structure height | Leakage distance | Lightning impulse withstand voltage | Power frequency withstand (wet) |
10 kv | 4 kN | 260 mm | 460 mm | 110 kv | 50 kv |
24 kv | 5 kN | 355 mm | 655 mm | 125 kv | 60 kv |
35 kv | 6 kN | 450 mm | 950 mm | 230 kv | 95 kv |
