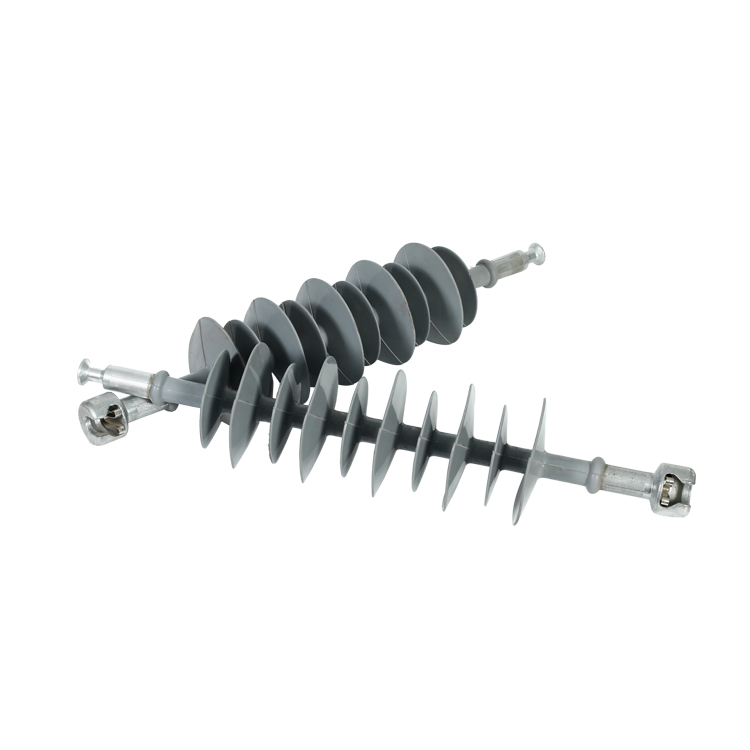

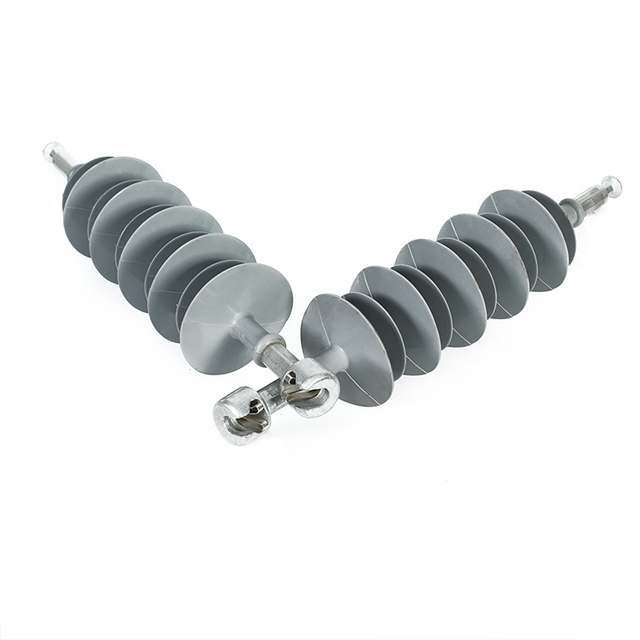

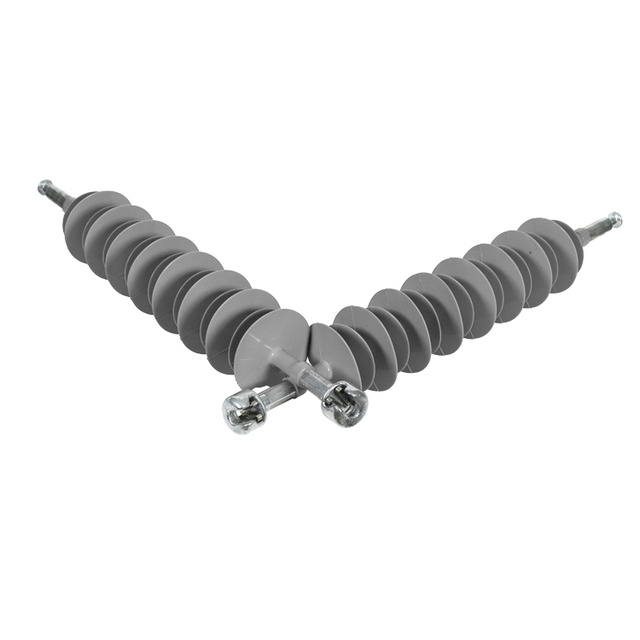

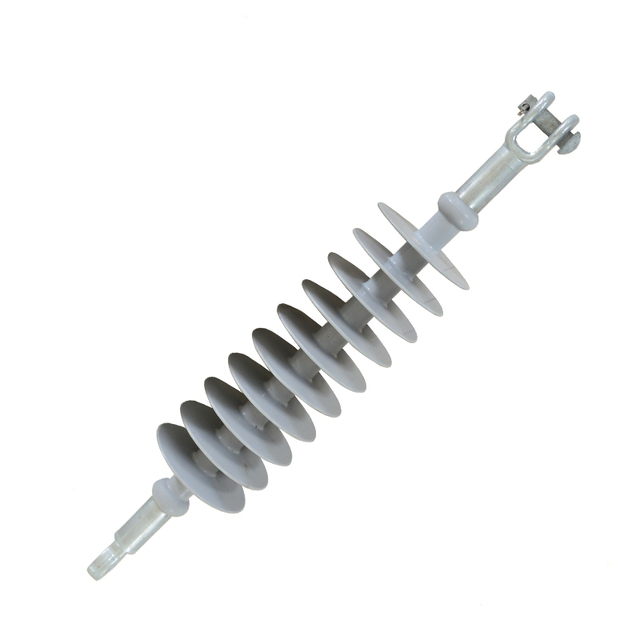

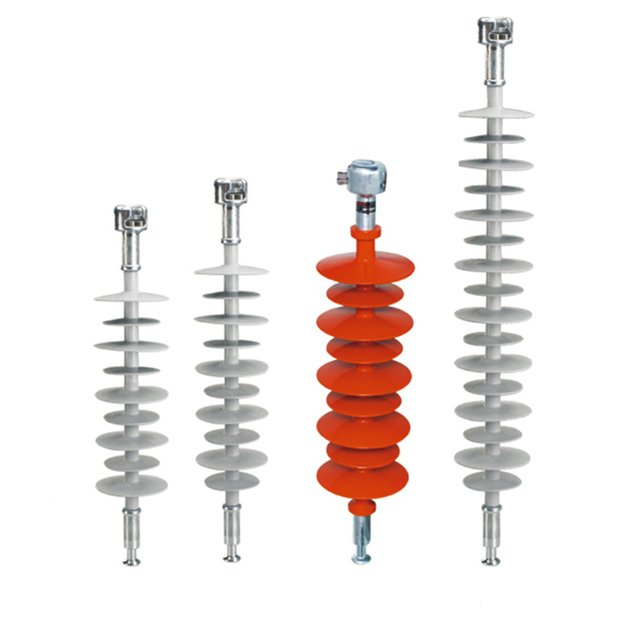

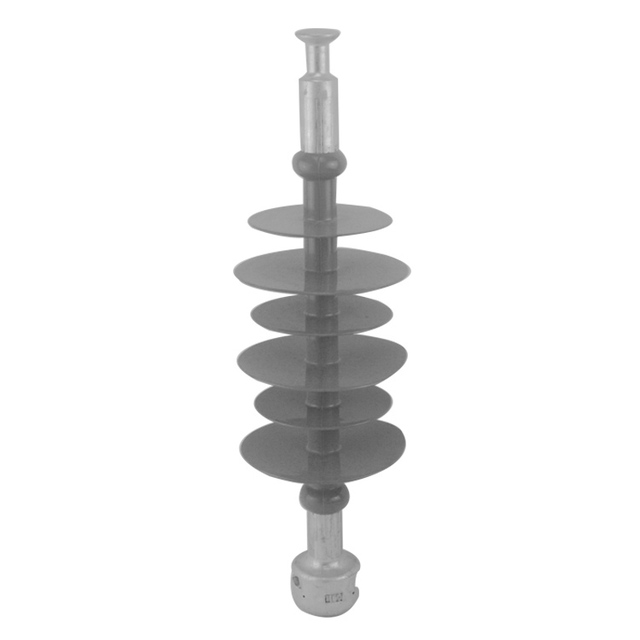

The tension composite insulator is suitable for polluted areas, especially in heavily polluted areas. It has high tensile strength, good antifouling performance, easy to install and use, etc, and adopts all kinds of hardware connection structure, which is tightly connected with the line fittings.
COMPOSITE SUSPENSION INSULATOR:
Features:L-s shed,proper shed gap, standard structure height,suitable for rainy and class 3 pollution area.
Features:L-s-s proper shed gap,t standard structure height, suitable for northern area, preventing the icing flashover effectively.
Features:L-m-s shed,close shed gap,standard structure height,suitable for class 4 severe-pollution area.
Product types of composite insulators.
FXBW-- rod suspension composite insulator.
FPQ-- composite pin insulator.
FZSW-- composite pillar insulator.
FS-- composite cross-load insulator.
FCGW-- composite dry wall bushing.
FQE (X)-Composite Insulators for electrified Railways.
Roof Composite Insulators for FQJ-- electrified Road
MAIN TECHNICAL PARAMETERS
| Spec.& model | Rated voltage | Rated mechanical | Shed dia × Shed no | Strcture height (mm)±10 | Insulating distance | Min nominal creepage distance | Lightning full wave impulse withstand voltage | 1 min Power frequency wet withstand voltage |
| FNB4-1/70-XX | 1-3 | 70 | 96*2 | 280 | 110 | 240 | 30 | 7 |
| FNB4-6/70-XX | 6 | 70 | 96*3 | 330 | 155 | 360 | 60 | 25 |
| FNB4-28/70-XX | 28 | 70 | 96*7 | 510 | 335 | 840 | 180 | 85 |
| FNB4-33/70-XX | 33 | 70 | 96*8 | 550 | 380 | 960 | 205 | 90 |
| FNB4-35/70-XX | 35 | 70 | 96*8 | 550 | 380 | 960 | 230 | 95 |
Notification for order:

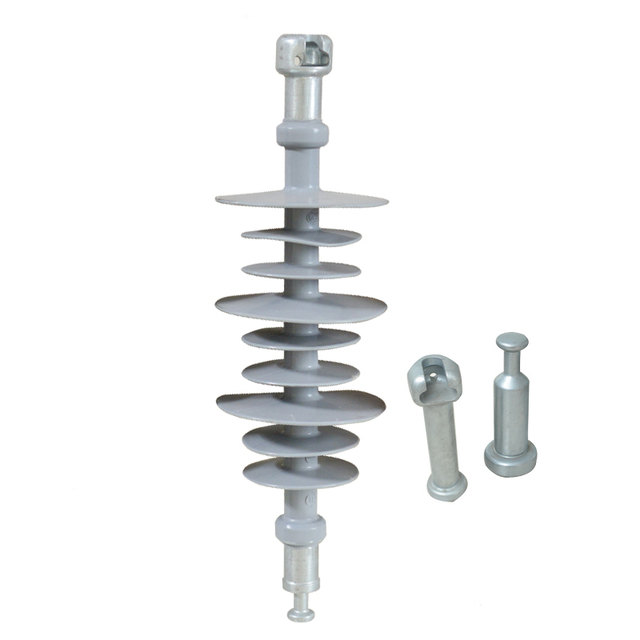

1.The hardware at both ends can be customized and matched according to the requirements of users.

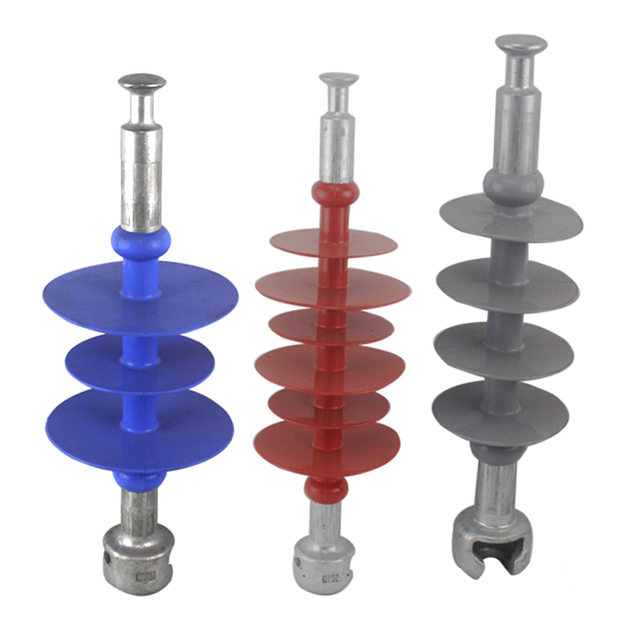

2.The color of silicone rubber is red by default, and you can also choose gray, blue, yellow, black and other colors.
Overview
Place of Origin: Shanghai, China | Brand Name: Spower |
Model Number:FNB4 | Material: Composite Polymer |
Rated Voltage:1-35KV | Tensile Strength:70KN |
Insulation distance:240-960mm | Certification: ISO9001:2015 |
OEM: Accept |
Lead Time
Quantity(Pieces) | 1 - 2000 | >2000 |
Est. Time(days) | 25 | To be negotiated |
Packaging & Delivery
Packaging Details Standard Exported Packing Or As Your Request
Port：Shanghai or Tianjin Port
